If you manage pedestrian safety for a school district, a city public works department, a parks agency, or a homeowners association, you have probably reached the same conclusion that thousands of agencies across the country have: a painted crosswalk and a standard warning sign are often not enough to get drivers to slow down and yield. Rectangular Rapid Flashing Beacons, commonly called RRFBs, are one of the most cost-effective tools available for closing that gap at uncontrolled crossings.

This guide explains what an RRFB is, why the research supports it, how the federal rulebook now treats it, how agencies typically pay for it, and what to look for when you are ready to specify a system. It is written for the person doing the homework before a purchase, not for someone who already knows the acronyms.

What is an RRFB?

A Rectangular Rapid Flashing Beacon is a pedestrian-activated warning device that supplements a marked crosswalk at an uncontrolled approach. It consists of two rectangular yellow LED light bars, mounted on the crossing warning sign on each side of the road. When a pedestrian presses a push button (or a passive detector senses someone waiting), the beacons flash in a rapid, irregular pattern that is deliberately hard to ignore.

The flash pattern matters. RRFBs use a wig-wag plus simultaneous sequence that loosely mimics the visual character of emergency vehicle lighting, which is far more attention-grabbing than the slow, steady flash of older circular beacons. That difference in conspicuity is the entire reason RRFBs outperform the devices that came before them.

An important point of clarity: an RRFB is a warning enhancement, not a traffic signal. It does not legally require a driver to stop, unlike a red light. It increases the odds that a driver will see the pedestrian and yield, which, at an uncontrolled crosswalk, is exactly the problem you are trying to solve.

Do RRFBs actually work? What the research shows

This is the question every budget conversation comes down to, and the evidence here is unusually strong for a traffic safety device. The Federal Highway Administration lists RRFBs among its Proven Safety Countermeasures, a designation reserved for treatments with solid research support behind them.

According to FHWA, RRFBs can reduce pedestrian crashes by up to 47 percent and can increase motorist yielding rates to as high as 98 percent. FHWA is careful to frame the yielding figure as a ceiling rather than an average: the actual rate varies with the posted speed limit, the number of travel lanes, the pedestrian crossing distance, whether the road is one-way or two-way, and the time of day. The underlying research found a wide range of yielding rates across sites, with some as low as the high teens, which is a useful reminder that placement and site conditions matter as much as the device itself.

Two points are worth holding onto when you build your internal case. First, the improvement over a plain marked crosswalk is large, not marginal, and it comes from a federal agency rather than a vendor. Second, the figures are stated as ceilings with conditions attached, so the honest version of the claim is "up to" rather than a flat number. Citing it that way is both more accurate and more credible to an engineering audience.

Source: FHWA Proven Safety Countermeasures: Rectangular Rapid Flashing Beacons

RRFBs and the MUTCD 11th Edition: from interim approval to standard device

For most of their history, RRFBs lived in a regulatory gray area. The FHWA first allowed them under an interim approval back in 2008, which meant agencies could install them but had to operate within specific conditions tied to that approval. That status created uncertainty among engineers who wanted a device formally codified in the rulebook before recommending it.

That changed with the 11th Edition of the Manual on Uniform Traffic Control Devices, the federal standard for every sign, signal, and marking on public roads in the United States. The 11th Edition was published in December 2023, took effect in January 2024, and includes RRFBs as a formally recognized device in Chapter 4L.

For a traffic engineer or public works director, this is the green light. A device written into the MUTCD can be specified and installed as a standard tool rather than a special case. A few of the provisions worth knowing as you plan a project:

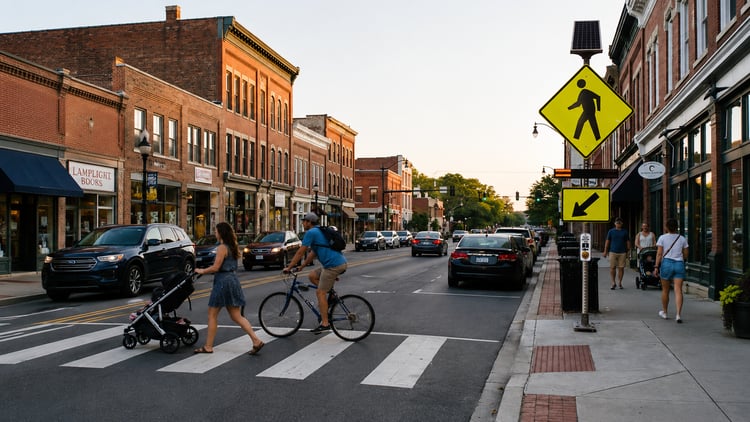

• An RRFB is used to supplement a pedestrian (W11-2), school (S1-1), or trail (W11-15) crossing warning sign, paired with a downward diagonal arrow (W16-7P) plaque, at a marked crosswalk on an uncontrolled approach.
• RRFBs are not used at crossings already controlled by stop signs, yield signs, traffic signals, or pedestrian hybrid beacons, with narrow exceptions such as roundabouts.

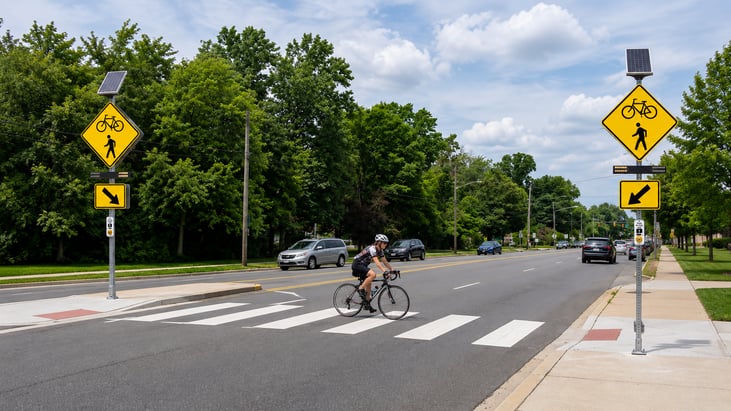

• At a typical installation, beacons are placed on both sides of the roadway so the crossing is reinforced from both directions.
• The flash sequence and beacon dimensions are defined in the standard, so a compliant product is built to those parameters rather than left to interpretation.
• Is the product built to MUTCD 11th Edition (Chapter 4L) parameters, and can the vendor confirm that at the specification level for your application?
• Does the crossing qualify as an uncontrolled approach where an RRFB is the appropriate treatment, paired with the correct warning sign and plaque?
• What is the installed cost, including power, trenching if any, and labor, rather than just the hardware price?
• Does solar make sense at this site, given the distance to power and the cost of bringing electrical service in?
• Have you confirmed your state's currently adopted standard with your state DOT?
• Is there a funding program you can align this purchase with, and does the safety research support your application?

One practical scheduling note: states were given a window to adopt the 11th Edition, and individual states can issue their own supplements. Before you finalize a specification, it is worth confirming the current adopted standard with your state DOT, because your state's version is the one your project will be held to.

Source: MUTCD 11th Edition, Chapter 4L (FHWA)

How agencies pay for RRFBs: the funding picture

Most of the agencies installing RRFBs do not have a discretionary line item sitting in the budget for pedestrian beacons. Instead, they assemble funding from federal and state safety programs. You do not need to be a grant expert to start the conversation, but it helps to know which doors exist.

Several federal programs have historically funded the kind of pedestrian safety infrastructure that RRFBs fall under, including the Highway Safety Improvement Program (HSIP) and the Safe Streets and Roads for All (SS4A) program. Because RRFBs are an FHWA Proven Safety Countermeasure, they tend to align well with the goals these programs are written to advance, which can strengthen an application. Funding rules, cycles, and eligibility change over time, so treat any specific program detail as something to verify against the current program guidance rather than a fixed fact.

The practical takeaway for a buyer is this: the documentation that makes a strong RRFB purchase, namely the safety research and the MUTCD compliance basis, is also the documentation that makes a strong funding application. The work you do to justify the purchase internally is largely reusable when you go looking for the money to pay for it.

Solar versus hardwired, and why installation cost matters

Once you have decided an RRFB is the right treatment, the next real decision is how it gets powered and installed. This is where total project cost is often won or lost, because the sign itself may be a smaller line than the work required to bring power to it.

Hardwired (AC-powered) systems draw from the grid, which can mean trenching, conduit, and electrical permitting. At a crossing that sits far from existing electrical infrastructure, that trenching can quietly become the most expensive part of the entire job.

Solar-powered systems sidestep most of that. They generate and store their own power, which means no trenching for electrical service and, in many cases, an installation that a small crew can complete without heavy equipment. For crossings in parks, along trails, in newer subdivisions, or anywhere the nearest power source is inconveniently far, solar frequently wins on total installed cost even before you account for the lack of an ongoing electric bill.

When you compare systems, compare the installed cost, not the hardware's sticker price. Two products with similar unit prices can have very different project totals once site conditions, power, and labor are included.

A short checklist before you buy

If you are getting close to a decision, these are the questions worth answering for any system you are seriously considering:

This article is general information for procurement planning and is not engineering advice. Always confirm device application and your state's currently adopted standard with your state DOT before finalizing a specification.
